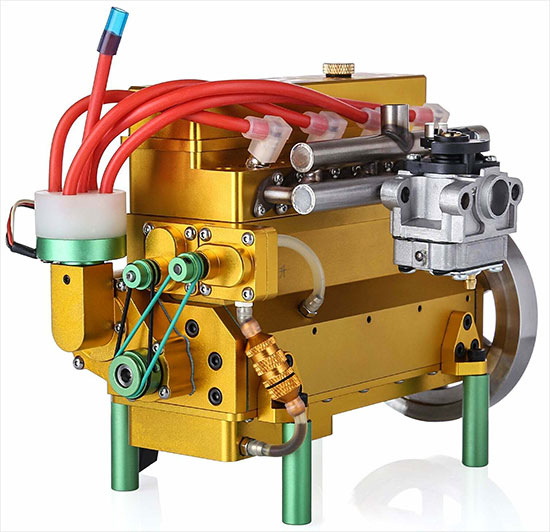

Type: 4-Cylinder
Displacement: 4 x 8cc (32cc)
Stroke: 20mm
Bore: 24mm
RRM: 1000-6000rpm
Power: 1-2HP
Voltage: 6-12V
Fuel: Gasoline 95＃ / 97＃ / 98＃
Cooling: Water with built in pump
Oil: 35ml of SAE30 | Tappet Clearance: 0.5mm
Cylinder Liner: Brass Hard Chromed
Piston: Twin Ring 7075 Aluminium Alloy Piston
Piston Ring: Two Rings per piston
Connecting Rod: One-Piece Casting
Crankshaft: One-Piece Casting
Cylinder Block: 7075 Aluminium Alloy, Anodized
Lubrication Method: Independent oil pump Lubrication
Engine Size: 21 x 12 x 15cm
Country of Manufacture: China
Weight: 3000g |
