	18 oz steam injector with 5/32 model engineer threads to fit 3/16 dia pipes it as been tested to pick up from 50 to 80 psi

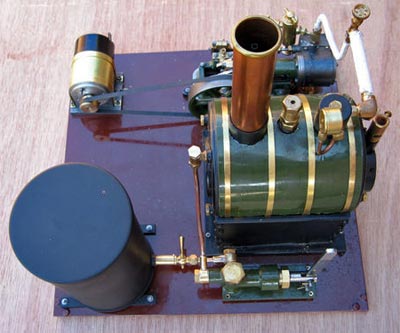

	Stuart 10H steam engine Stuart HB3 boiler purchased from Stuart Models in 2009 with test Certificate and a Guarantee. Stuart reservoir and displacement lubricator. 10H and feed pump machined from castings in 2008. 8V Dynamo made from aircraft motor. Cost £500 Stuart HB3 Boiler: Diameter 4 1/8 inches Length 5 7/8 inches Height 6 1/2 inches (without chimney) Weight 2.0 Kilograms Working Pressure 60 psi For: Stuart S50 Stuart 10V Stuart 10H

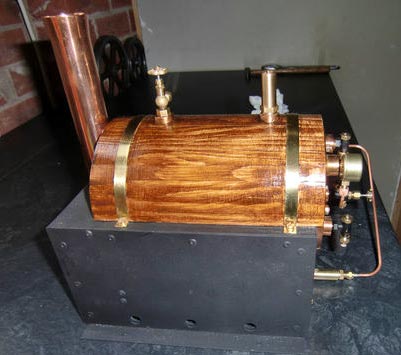

	Live Steam Boiler Scratch built boiler and gas tank, complete with all fittings, boiler self Boiler is x 4 inch diameter, case is all round 4 inch diameter 6.5 inches long tested to 80psi. aluminium case with 6mm insulation Cost £265

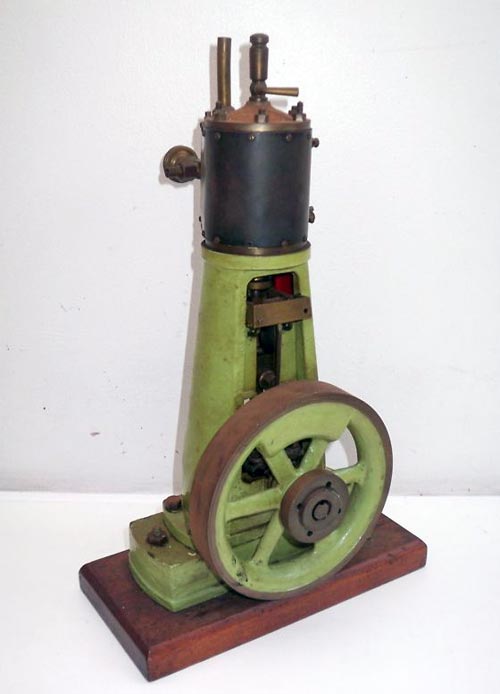

	Live Steam Bottle Engine 15 inches tall 8.5 inches wide 7.5 inches deep weight 15 kg 1.3hp @ 800rpm at 100psi 0.5hp @800rpm at 50psi Flywheel diameter 6.5x1 inches total swept volume 201 cc

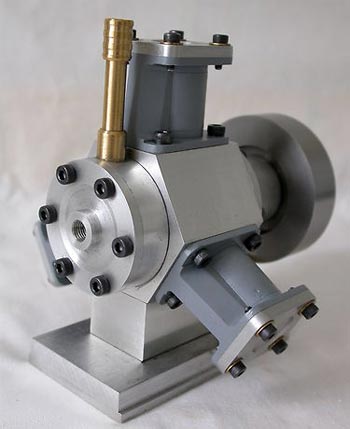

	"Royal Cygnet" designed by Edgar T Westbury Self starting 3 cylinder radial steam engine, with an in line orbital distribution valve and a single throw crankshaft, running on ball bearings within an oil filled crankcase

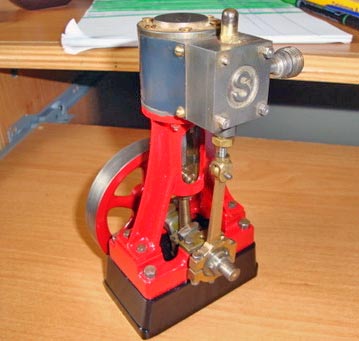

	Stuart 10v STEAM ENGINE Bore 0.75" (19mm) Stroke 0.75" (19mm) Power 0.05bhp (37w) at 60 psi Weight 900 grms total swept volume 4.31 cc Cost £115

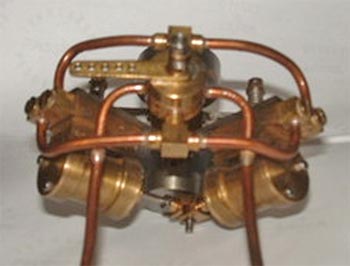

	Double acting V twin oscillating steam engine Fitted with forward-reverse valve 3/8 bore (9.525mm) 3/4 stroke (19.00mm) total swept volume 2.71 cc (5.42 cc as double acting) cost £80

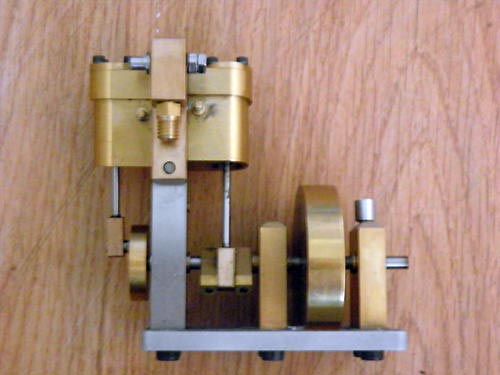

	Single acting Inline twin oscillating steam engine Bore 14mm Stroke 18mm Weight 380 g total swept volume 5.5 cc cost £40

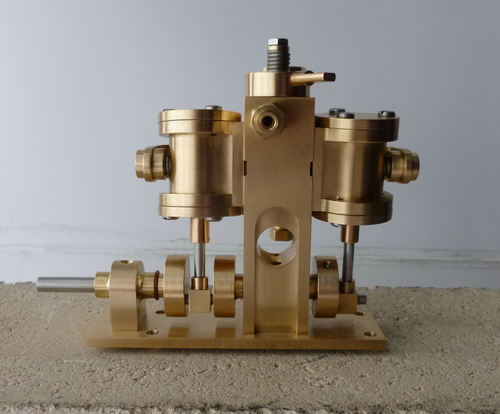

	Double acting Inline twin oscillating steam engine £400 Stuart Puffin Marine Engine Height 3 1/4" Width at base 1" Length at base 3 1/2" Bore 7/16" (11.1125mm) Stroke 7/16" (11.1125mm) Weight 380 g total swept volume 2.155 cc ( 4.3 cc as double acting) Bronze piston rod guides 1/2" dia. inline lubricator Silicone piston rings stainless steel pushrods stainless steel crankshaft PTFE (teflon) control valve suitable for powering small steam launches of approximately 3 feet length cost £220

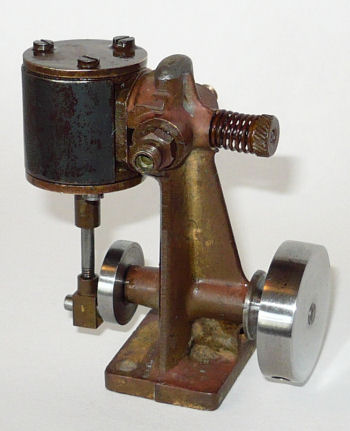

	Stuart Turner ST Oscillator pre-ww2 Single cylinder double acting Live steam engine. Height: 2 1/2 inches Width: 1 inch Length: 2.125 inches Stroke: 7/16 inch (11.1125mm) Bore: 7/16 inch (11.1125mm) Flywheel Diameter: 1 inch Operating pressure: 45 psi Weight: 255 grms total swept volume 1.077cc ( 2.155 cc as double acting) cost £40
	Lever Valve and Oiler Designed to control intake and exhaust switching. Remotely mounted servo used to activate the valve lever through 90 degrees. Length 65MM Width 40mm Height 52mm Pipe size 4MM Weight 76g. Cost £30

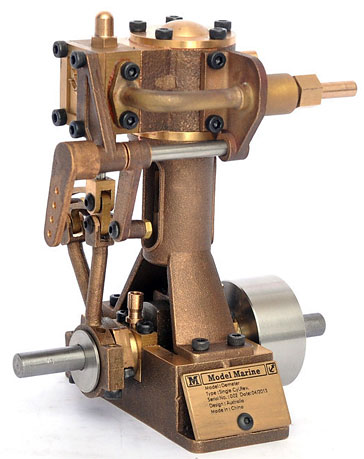

	Model Marine "DEMETER" Double Acting, Single cylinder Engine base, columns, cylinders and crankshaft rods are all made from Bronze, the crankshaft is machined from high quality 45% Chromium steel. The pistons and rods, steam valve rods, flywheel and also the reversing shaft are ALL machined from Stainless Steel. All other parts made from Brass. The tails for 3/16 inch and 4 mm dia copper tube Bore: 18 mm dia Stroke: 18 mm Reversible: Stephenson’s gear Overall length: 114 mm Base length: 36 mm Base width: 90 mm Engine height: 130 mm Flywheel: 38 mm dia

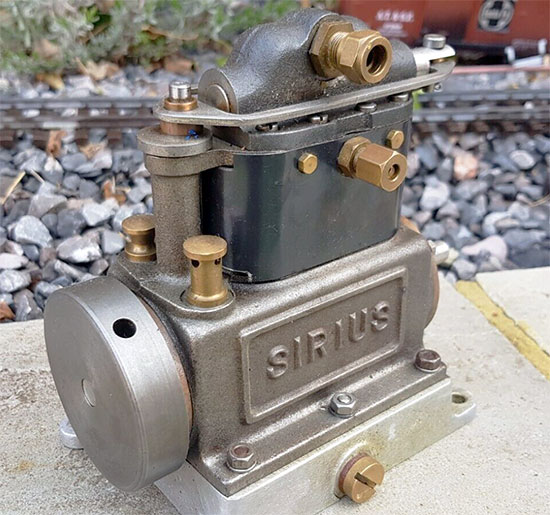

	Stuart Turner Twin-Cylinder Sirius cost 505

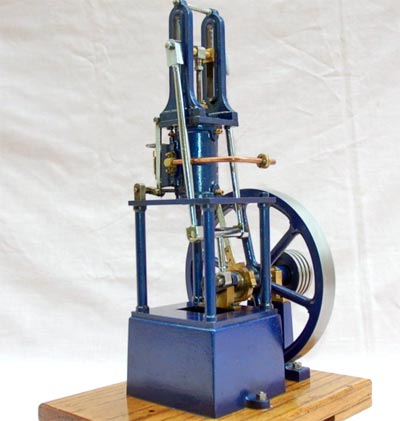

	Stuart Turner “James Coombes”table engine 1”bore 2”stroke Height 15” width 7” Weight 5kg cost £555
