HobbyKing HobbyKing "Red Head" Pulse Jets were made in China and marketed worldwide by Hobbyking from 2013 for several years |
| HobbyKing "Red head" Pulse Jet engine
, , China. (2013) Cost: £103 length: 550mm
Diameter: 64mm
Ports/Reeds: 10
Weight: 460grams
Thrust: 1.6 kilograms (3.52 lbs)
Fuel: gasoline (no oil required)
Ignition: Spark plug with a 12V external igniter box (only needed for starting)
Starting: Bicycle Pump or 40psi Noise: 113 eB @ 5m |
Zanin Zanin Pulse Jets were produced between 2006 and 2016 by "Z-JET Pulsor Reactors & Turbines" who were located in Castagnole Di Paese, Italy. |

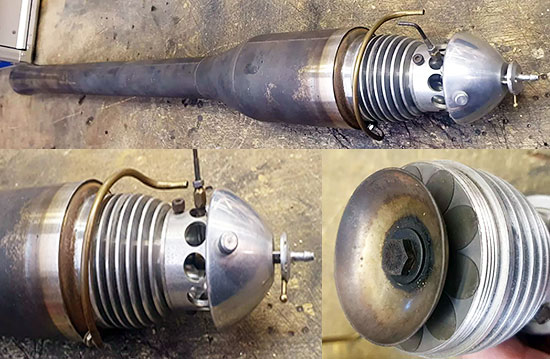

| Zanin Z23 R/C Pulse Jet Cost: £120
Thrust: 3.6 Kg - 8.9 lbs (equivalent to about 8hp)
(the Dynajet produces 1.8 Kg, the HobbyKing 1.6 Kg)
Length: 740 mm
Diameter: 80 mm
Combustion chamber diameter: 67mm
Weight: 750g
Material: Inconel (Nickel Chromium high temperature super-alloy with a melting point in excess of 1,300 Celsius)
Fuel: Petrol 80 octane
Cost in 2007 was €417.00 (about £428 at that time) |
Wren |
To start first tease out the glow plug element, open the gas valve two turns, one-and-a-half on the needle valve then raise the throttle stick to full, then back to idle, and it initiates the start sequence.

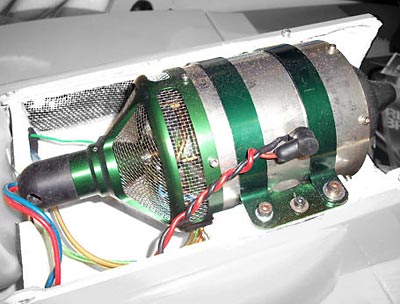

To stop the engine hit the throttle cut function, or the trim to get to the throttle cut position. The engine shuts down, and goes into cool-down mode (blips of the starter motor until the temperature gets to around 110°C) | WREN 54 MK3 GAS TURBINE Run Time: 1380 mins running with 196 starts
Oil: 5% Castrol TT - motorcycle oil (red in colour) in fuel
Thrust: 14lbs @ 160,000 rpm (about 11hp equivalent)
Bearing Life: 24 to 70 hours
Fuel Consumption: 9.0oz per minute |

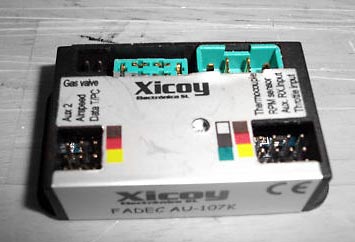

| Latest XIROY AU-107K FADEC ECU For Wren 54 Mk3 Gas Turbine above |
JetCat |

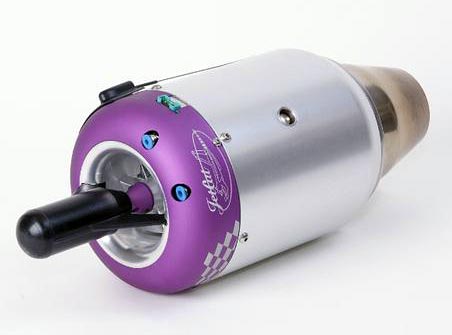

| JetCat P200 Gas Turbine Thrust: 52 lbs @ 112,000 RPM (equivalent to about 40hp)
Weight: 5 LB
RPM Range: 32,000 - 112,000 RPM Exhaust gas temp: 580°C-690°
Fuel consumption: 24 oz per/min (1.5 pints/min) at full power
Fuel: Jet A1, 1-K kerosene
Lubrication: approximately 5% synthetic turbine oil in the fuel
Maintenance interval: 25 hours Video test run! |
